TAC-VN Series
Data registration system
Data Entry System / NT
The cutting data system increases cutting efficiency and reduces the amount of time spent in preparation for cutting.
● Registration of data in multiple TACs is possible using single system.
Cutting changes

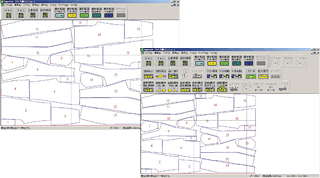

Super Cut III / NT
The host of functions allows the TAC system to its fullest performance, boosting cutting efficiency.
● Includes Takatori’s original cutting function that allows smooth processing of remnants.
Barcode System (Option)
The barcode system reduces the preparation time for cutting and further increases cutting efficiency. It also helps to prevent cutting based on errors in marker callout.
Marking Specification Sheets with Barcodes
Super Cut converts the marker information (marker names, etc.) on marking specification sheets to barcodes and prints them out. These barcodes are read to Cutting Adviser and preparations are made for cutting.
Sorting information
TAC-LBX Automatic Labeling Machine
Reduces the cost and eases parts sorting.
● If a printer is attached to the head section, 3 second / piece sticking speeds can be achieved.
TAC-C Series
LINE UP
| Cutting Width | 1,200 mm |
|---|---|
| 1,600 mm | |
| Cutting Table Length | 2 to 12 m (configurable to any length in meters) |
| Cutting Table Height | 800 mm |

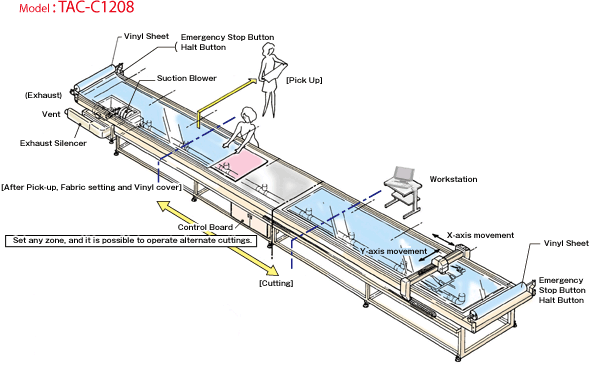

TAC-C1208(Standard Specification)
| Cutting Area | 1,200 mm × 8,000 mm |
|---|---|
| Fabric Thickness | During absorption within 5 mm |
| Cutting Method | Reciprocation system |
| Head Speed | Straight line w/dry run 60 m/min. |
| Fabric Setting | Blower absorption (inverter control system) |
| Air Supply | 0.5 Mpa (70NL) |
| Electric Capacity | Approx. 27.5 KVA 3Φ AC 200 V 50/60 Hz |
| Weight | Approx. 3,000 kg |
Option
・Labeling System
・Ultrasonic Vibration Unit
・SUPER CUT II (CAD Date Editing Soft)
・LAN System
・Data Registration System
Representative Model
